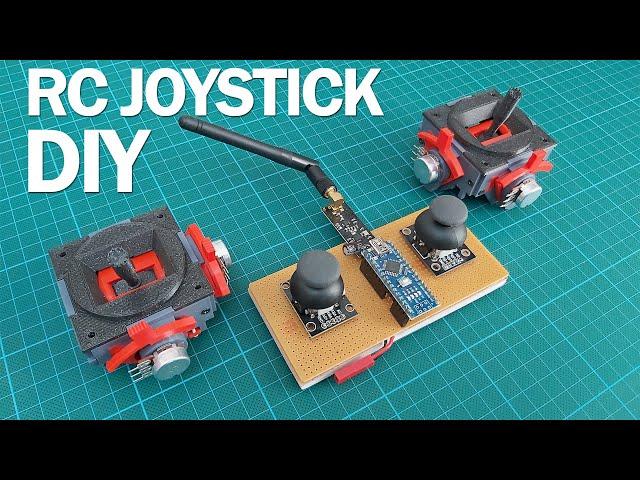

How To Make RC Joystick With Trim For Diy Radio Control. Diy RC Joystick.

Making Joystick for diy remote control circuits.

3D STL Files: https://www.printables.com/model/903000-rc-joystick

Details: https://www.rcpano.net/2021/06/26/how-to-make-rc-joystick-with-trim-for-diy-radio-control-circuits/

In this project I used a standard potentiometer (220°). Ideal potentiometers for RC joysticks are 60° ones. But they are not easily available and they are expensive. With the standard pot, the servo travel does not reach the maximum values. But by changing the "mapJoystickValues" values in the transmitter code, sufficient movement space can be obtained.

"mapJoystickValues" values for Arduino transmitter code (for 60° pot)
(12, 524, 1020)
The values I applied for the standard potentiometer (220°)... "mapJoystickValues" values: (250, 540, 600)

DIY Remote Control Video 6CH: https://www.youtube.com/watch?v=pjBnFZGfsjI&t=449s
DIY Remote Control Video 4CH: https://www.youtube.com/watch?v=bD7rQbnSbek&t=2s

#rcjoystick
#diyjoystick
#makingjoystick

00:00 Intro
00:06 Printing parts
01:05 Assembly
10:33 Soldering pots to the remote control
11:12 Test
